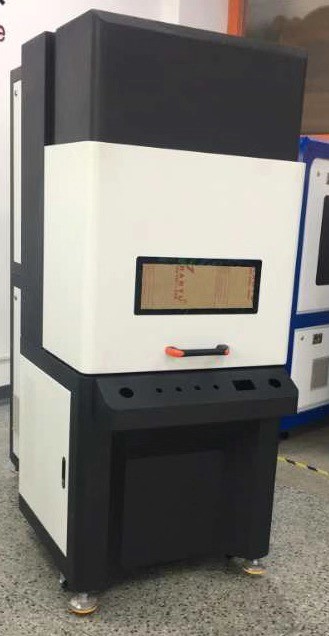

High Precision Galvo laser Machine Water Cooling For NonMetal Materials JHX-6080
DESCRIPTION
CO2 laser is a gas laser with CO2 as laser medium and wavelength near 10.6um. When high-voltage is added to electrodes, discharging through the cavity will excite CO2 molecules and produce 10.6um laser radiation. After amplifying its energy, the discharged laser can be directed for processing material.
Features
High precision, high speed, marking clear, strong permanen
Low power consumption, cost effective and long life, convenient to maintenance.
Integrated and compact structure
Laser tube, stable and long life.
Versatile marking software is compatible withCoreldraw,AutoCAD,Photoshop.
Support PLT, DXF, BMP, PCX, JPG, common vector and bitmap graphics, date marking supporting, serial number, bar code, 2D code, incrementing serial No., automatic jump codes, etc.
Excellent for long-lasting operation
No pollution and consumption
Material & Application
Leather, cloth, wood, paper, acylic, epoxide resin, polyester resin and such non-metal materials.
All kinds of metal and alloy; Rubber porcelain film, stone, silicon; epoxies resin and ABS etc non-metal.
Technical specification
| Product model | JHX-6080 |
| Laser Type | Imported metal encapsulating RF CO2 laser |
| Laser Power | Option: 100W/150W |
| Working Area(mm) | 600x800 |
| Marking Area(mm) | ≦5 |
| Cooling | Water-cooling |
| Marking speed | 0-120000mmmin |
| Marking Repeat Precision | ≤±0.01mm |
| Marking line width | ±0.01mm |
| Min character | 0.30mm |
| Auxiliaries | Wind pump, Wind pipe etc |
| Pulse Frequency | ≤100KHZ |
| Working voltage | 220v±10%, 50-60HZ |
